EFFICIENT SPRAYING

LIVE THE “EFFICIENT SPRAYING” EXPERIENCE!

The reduction in optimal days for fieldwork, new environmental challenges and less available labour mean that farmers need a sprayer that is not just capable, but truly efficient. That’s why KUHN introduces KARAN, the new-generation sprayer designed to meet these demands head-on.

KARAN is the EFFICIENT SPRAYER: it combines high performance, comfort, sustainability and ensures optimal protection for crops, soil and the operator.

PERFORMANCE

COMFORT

PROTECTION

SUBSTAINABILITY

EAGLE: when speed meets precision

With EAGLE automatic contour control, spraying remains accurate even at high speeds. Operating at up to 25 km/h and maintaining a consistent 30 cm distance from the target, EAGLE ensures optimal coverage while significantly reducing drift.

It’s the perfect balance between efficiency and precision.

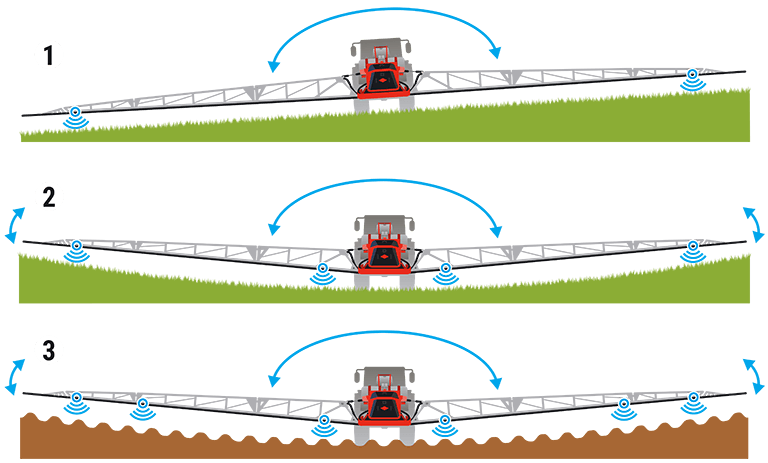

EAGLE: Several configurations for different uses
1. 1 .EAGLE : Boom height and tilt automatic control featuring 2 or 4 ultrasonic sensors
2. 2. EAGLE PRO : Boom variable geometry control on top featuring 4 or 6 ultrasonic sensors
3. 3. Optionally, 2 extra sensors for irregular crops or reduced working width
Prepare the spray solution in record time with KARAN

Filling-in water or liquid fertilizer and chemicals often takes up valuable time that the operator could spend on other tasks. With KARAN, both steps are significantly optimized.

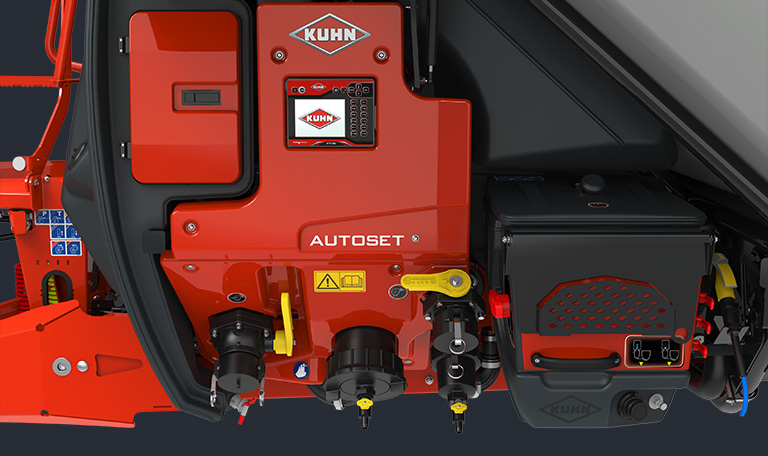

Thanks to the AUTOSET system, filling can reach a flow rate of up to 900 L/min. A high-performance chemical inductor hopper can process up to 220 L/min of liquid product.

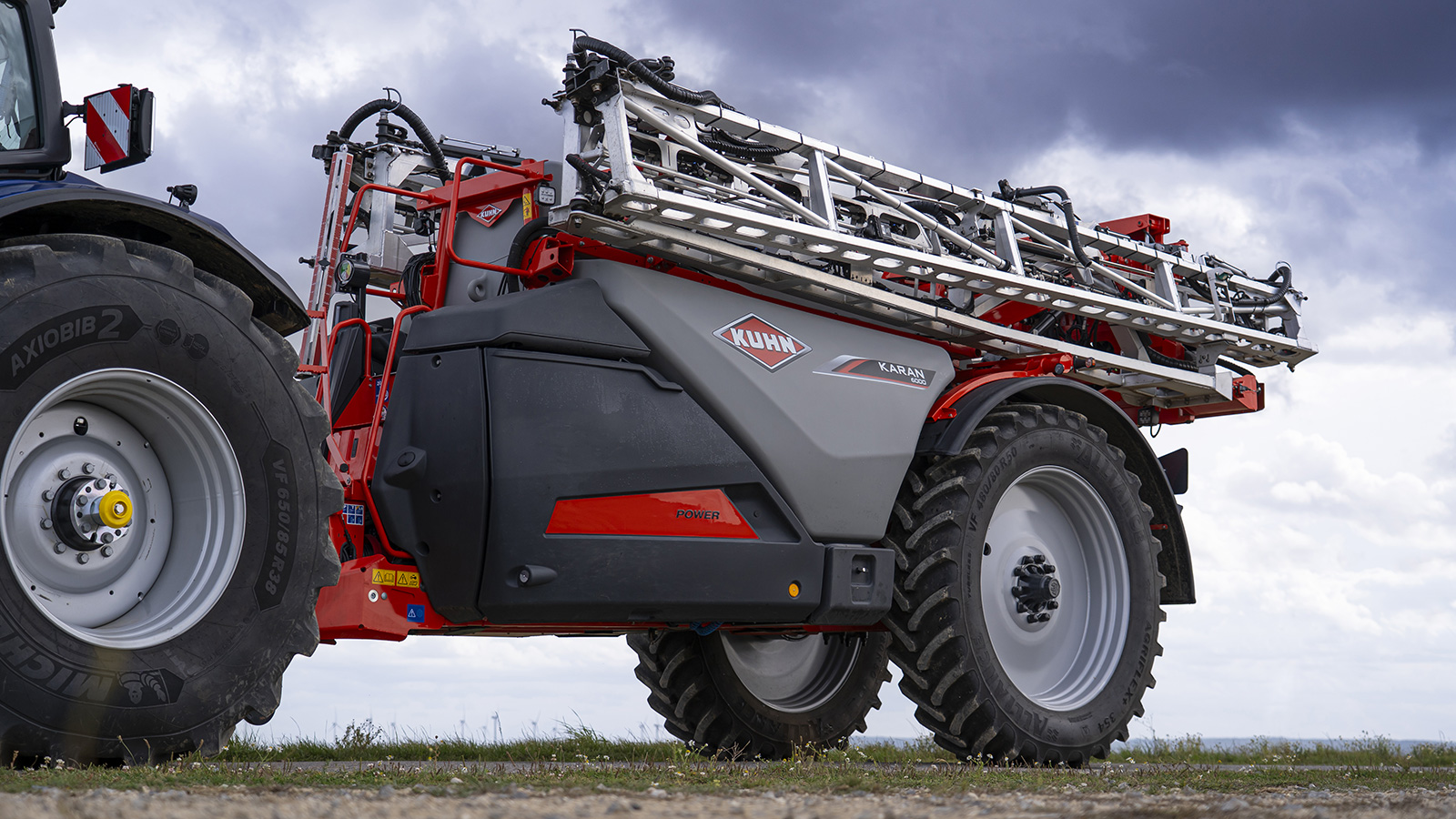

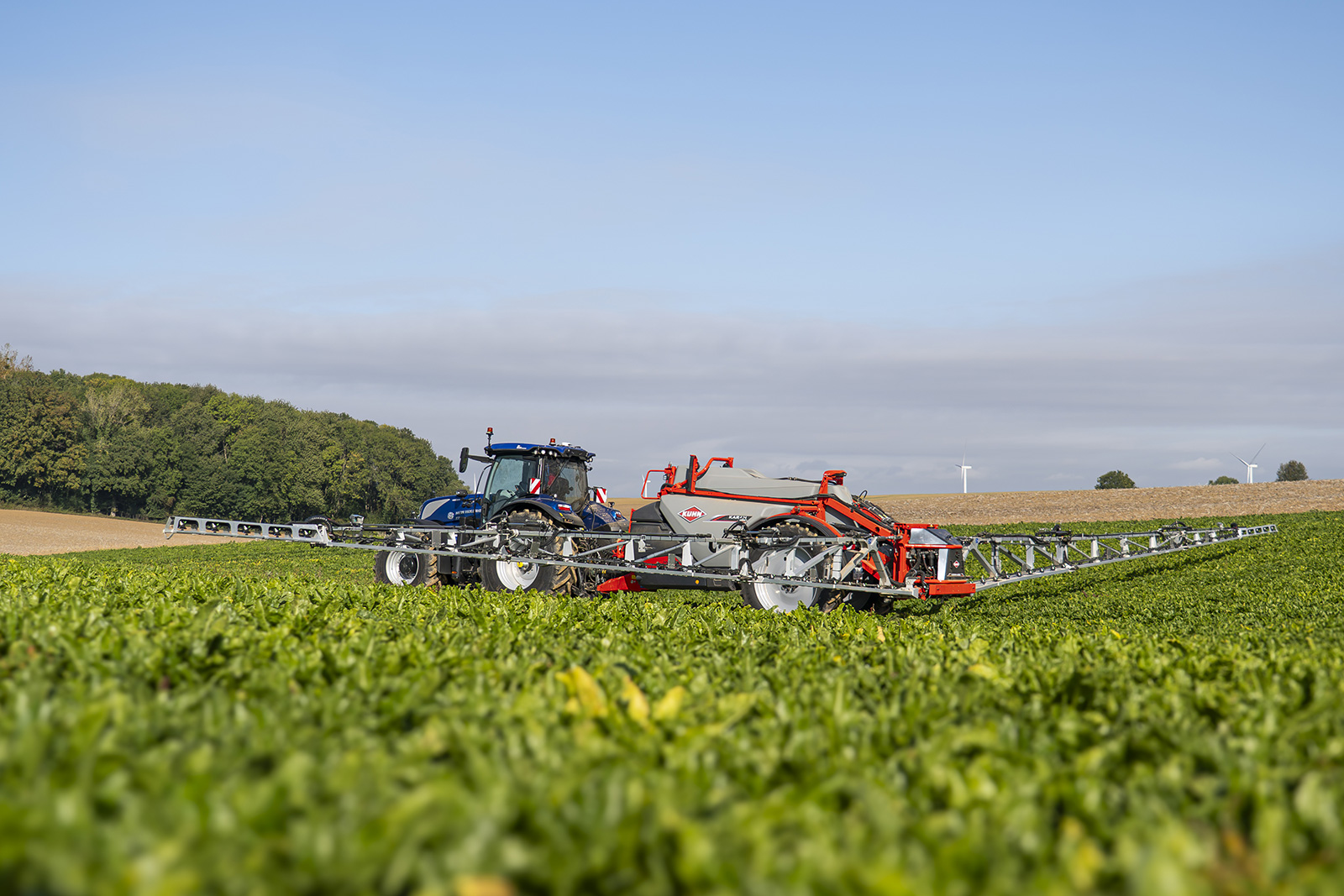

High performance spraying

With booms that can reach 45 meters in width, a working speed of up to 25 km/h, and a maximum spraying capacity of 500 L/min thanks to the AUTOSET set up, KARAN pushes the limits of performance. These features allow for exceptional productivity: up to 100 hectares per hour, depending on usage conditions.*
Performance through rinsing & dilution

After spraying chemicals, fast and thorough cleaning of the main tank is essential. That’s why every KARAN model is equipped with an 800 L clean water tank and 360° gyro washers, ensuring complete and high-performance rinsing.

While the rinsing cycle can be fully automated, an onboard assistant is also available to guide the operator step by step through a sequential dilution process. Making this entire operation both effortless and performant.

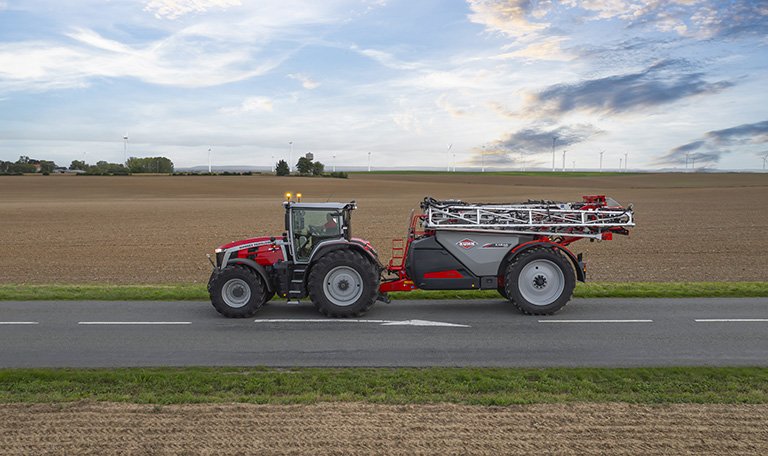

A highly maneuverable sprayer

The 28° TRACK MATIC steering axle makes it easier to maneuver in the farmyard and in the field, while limiting crop and soil damage. The optional hydropneumatic suspension ensures a comfortable ride and automatically adjusts to tank load.
Peace of mind

The load station is intented for daily ease of use. Ergonomics have been carefully designed to ensure the system is as intuitive as possible. With AUTOSET set up, all operations are carried out from MT 60 terminal. Moreover, a brand-new chemical induction hopper has been designed to enhance ergonomics and performance.

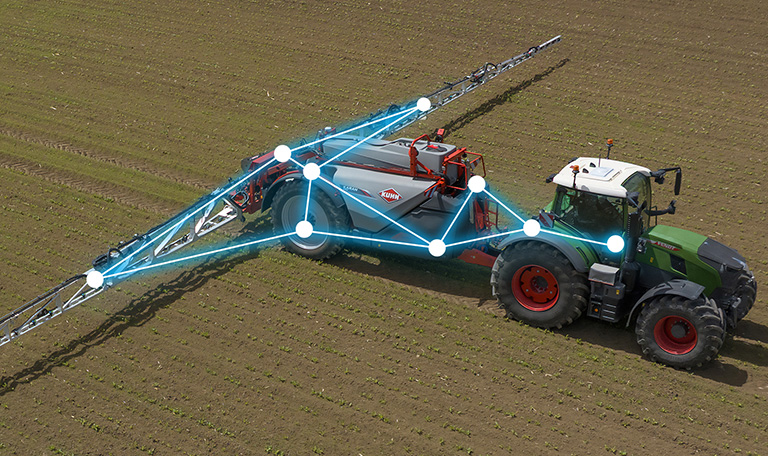

Smart Automation. Total Comfort. Absolute Serenity.

KARAN delivers a high level of automation, minimizes the risk of errors, and reduces operator stress.

KARAN can be equipped with AUTOSET or DILUSET systems, automating filling, agitation, and rinsing operations. The EAGLE automatic contour control keeps the boom at the selected height, regardless of terrain conditions. The PWM AUTOSPRAY system ensures consistent droplet size at constant pressure, no matter the speed.

KARAN also stands out for its user-friendly experience, thanks to smart features like MyKUHN environment or KUHN Electronics solutions.

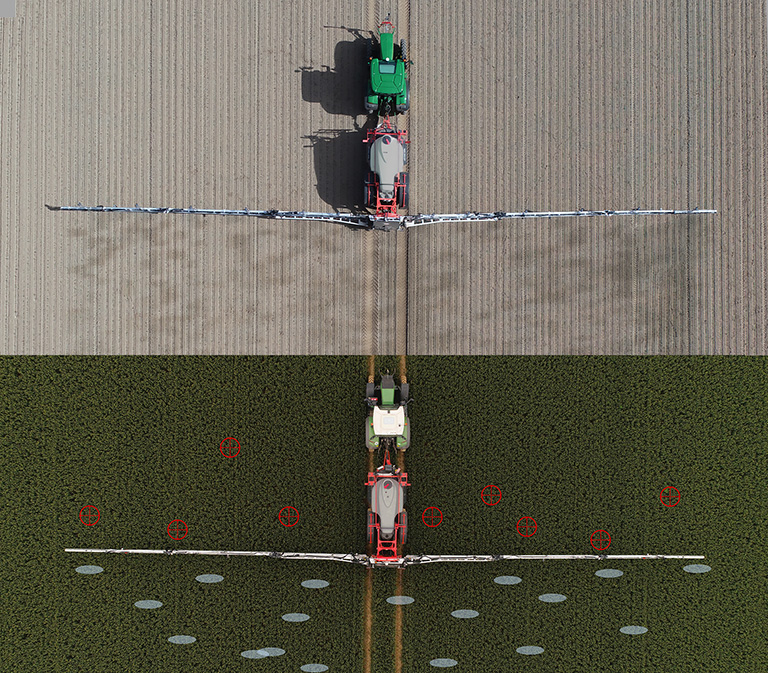

I-SPRAY : intelligence serving crop care

I-SPRAY enables smart, targeted spraying using hyperspectral technology and embedded AI to identify weeds from crops in real time. This precision allows for up to 95% savings by applying PPP only where needed, accelerating return on investment and reducing environmental impact.

Versatile in its use, I-SPRAY supports both Green-on-Brown and Green-on-Green applications, adjusting spray rates based on weed size. Future capabilities will include fungicide, growth regulator, and fertilizer applications.

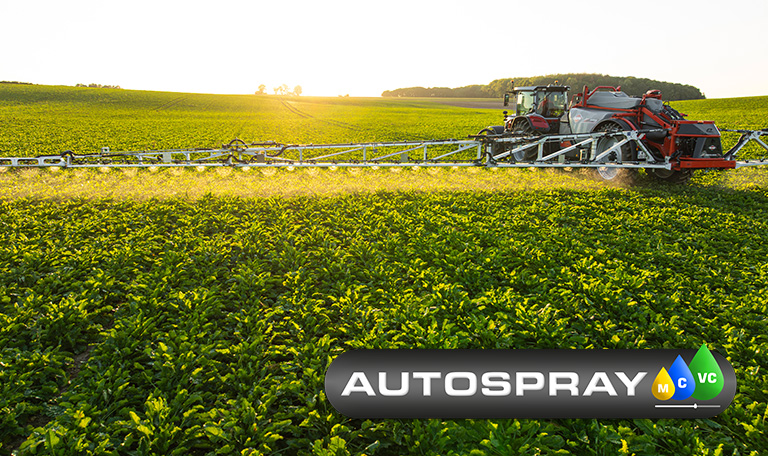

AUTOSPRAY: full control at your finger tips

AUTOSPRAY PWM system is a cutting-edge technology delivering exceptional spraying precision, with features such as individual nozzle control, the ability to maintain consistent droplet size across a wide speed range or even curve compensation.

AUTOSPRAY is thereby allowing the spray to reach its target with even greater accuracy while saving chemicals and enhancing drift control.

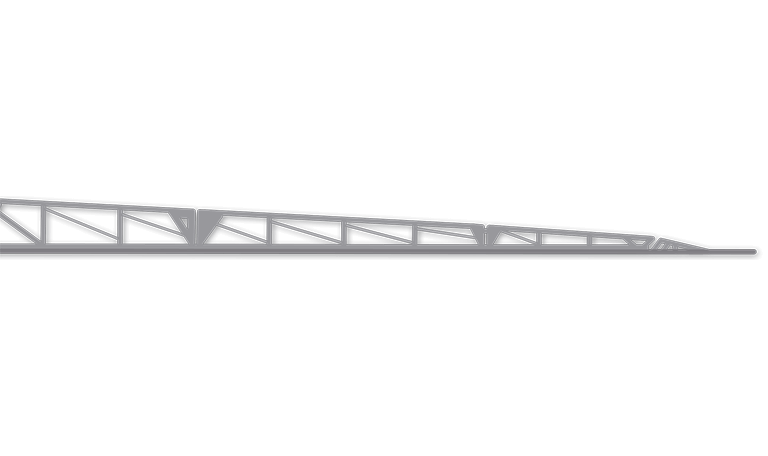

XEA3 boom reduces drift and improves targeting accuracy

Brand new XEA3 aluminum boom, delivering working widths up to 45 m together with 50 & 25 cm nozzle spacing.

By combining outstanding robustness with reduced spacing, it becomes an asset for limiting spray drift and ensuring targeted, precise product application. This configuration enables better coverage, even at low boom heights (30 cm) and meets the requirements of modern agricultural practices that prioritize environmental protection.

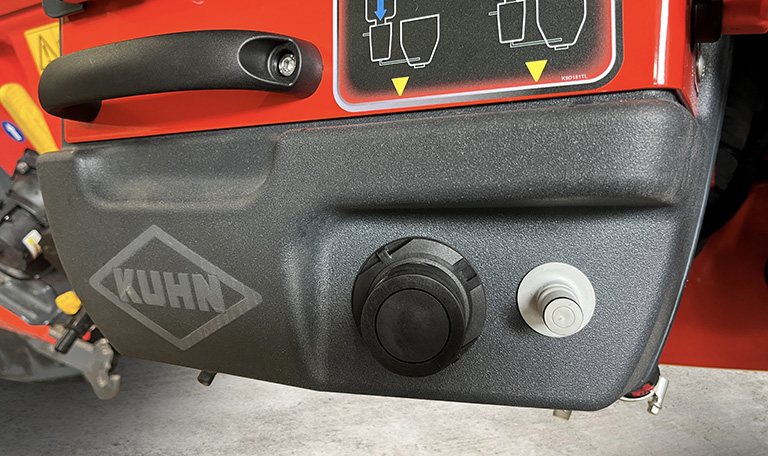

Incorporate safely with CTS technology

The KARAN sprayer is designed to accommodate CTS (Closed Transfer System) technology, a major advancement in operator safety. This system allows the transfer of container contents without opening them and without direct contact with plant protection products, significantly reducing exposure risks.
The result: cleaner handling, enhanced protection for the operator.

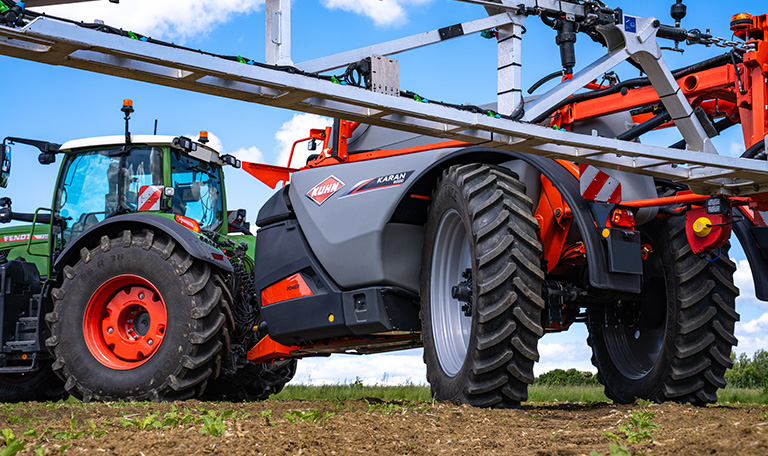

Reducing soil compaction: a challenge met by the KARAN sprayer

Soil compaction reduction is ensured by KARAN’s optimized weight (only 5,690 kg for the KARAN 6000 POWER model equipped with a 36-meter boom). The TRACK MATIC steering axle, with a 28° steering angle, allows precise tracking of the tractor’s wheels, thereby minimizing soil impact.

Additionally, KARAN can be fitted with a complete range of VF tires, providing reduced ground pressure and effectively contributing to the preservation of soil structure.

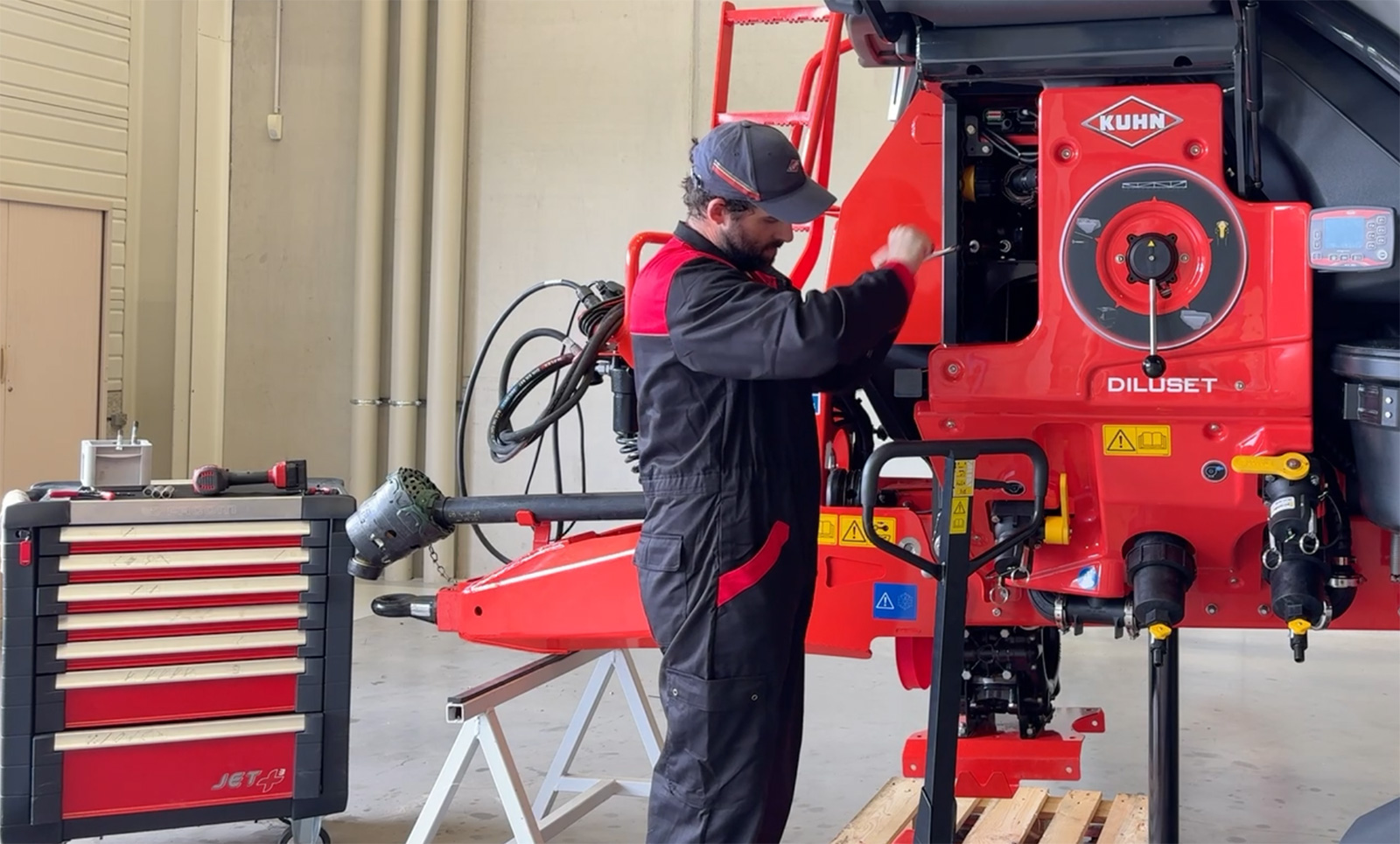

Innovation that makes maintenance effortless: easy pump disassembly

The KARAN is equipped as standard with a patented system: a winch that allows for easy pump disassembly. In under five minutes, the pump can be placed on a pallet for convenient maintenance.

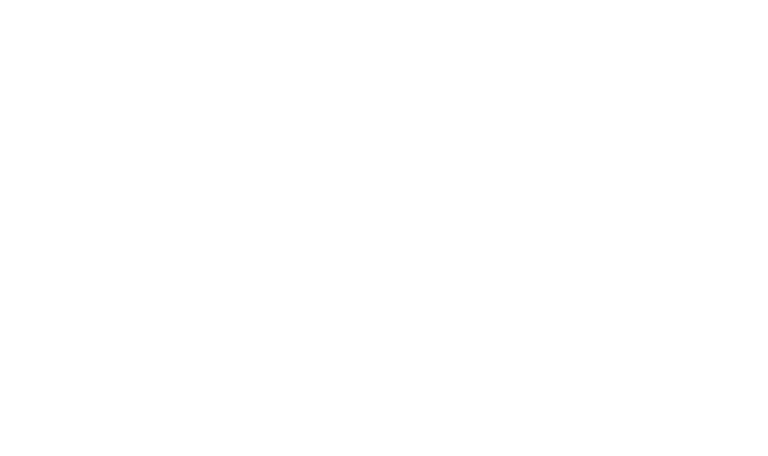

Innovation that makes maintenance effortless: removable tank sump and roof

Thanks to KARAN’s patented design featuring a removable tank sump and roof, there’s no need to enter the tank. This innovation ensures safer and more efficient servicing for both operators and mechanics.

Key components such as the 360° gyro washers, the gauge, and other parts are easily accessible, making inspection or maintenance simple.

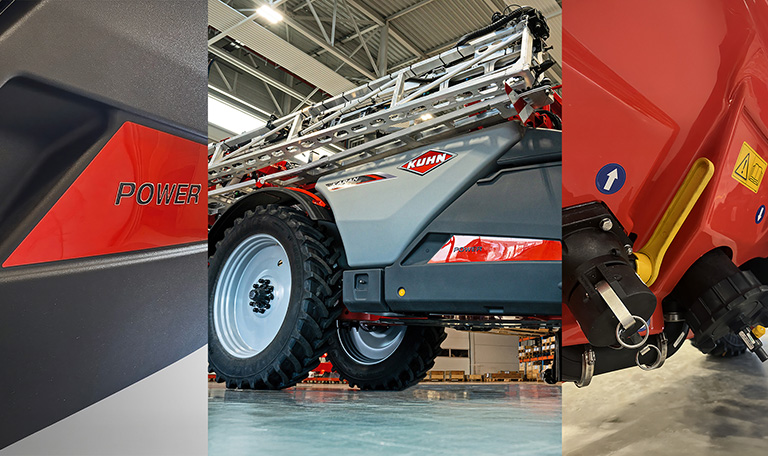

Long-life modern design

Built for lasting sustainability, KARAN combines full shielding, quality components, and a premium fit and finish.

The full shielding protects key parts from wear and environmental exposure. High-grade components contribute to robust performance under demanding conditions, while the premium fit and finish reflect KUHN’s attention to detail.

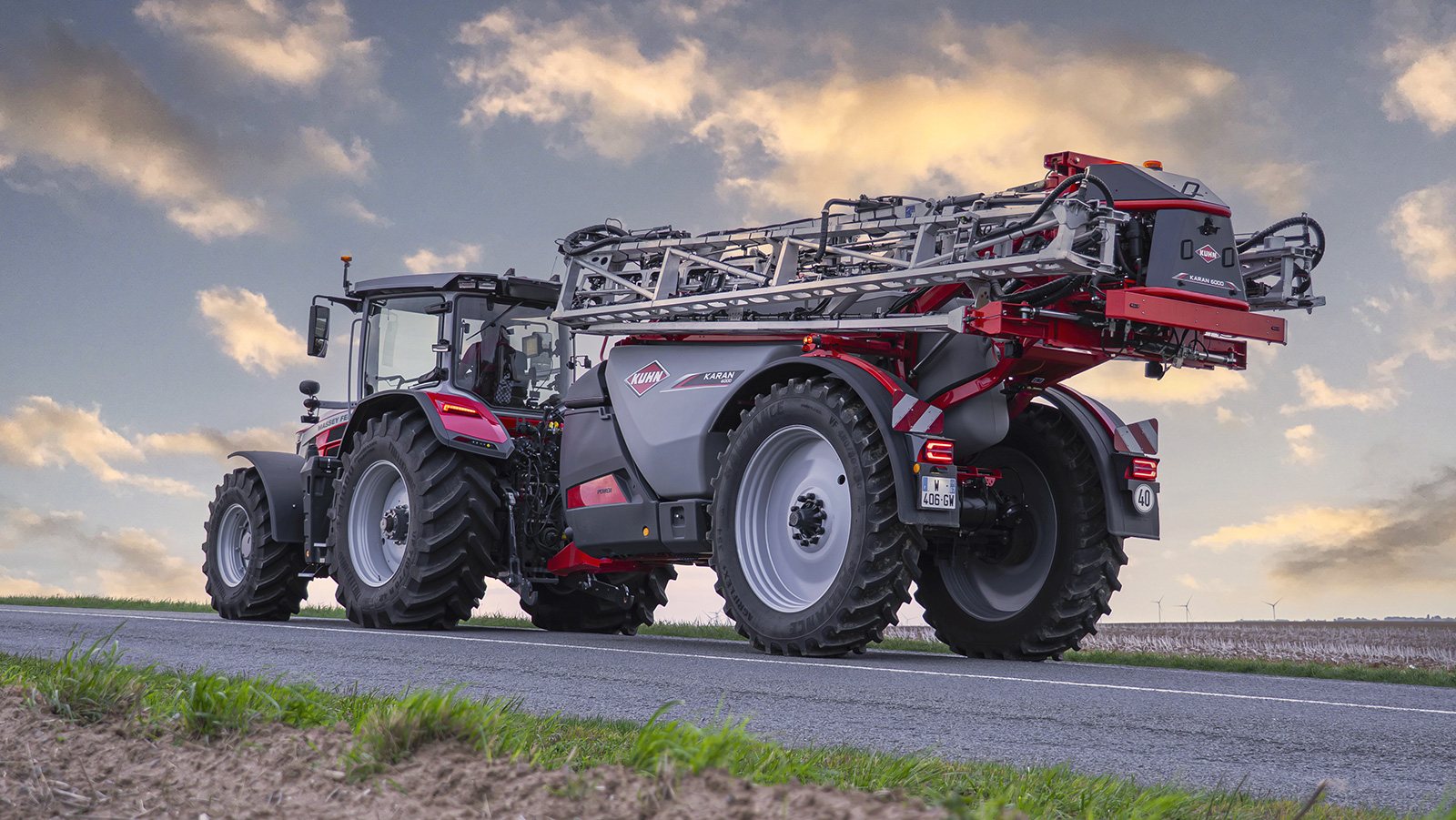

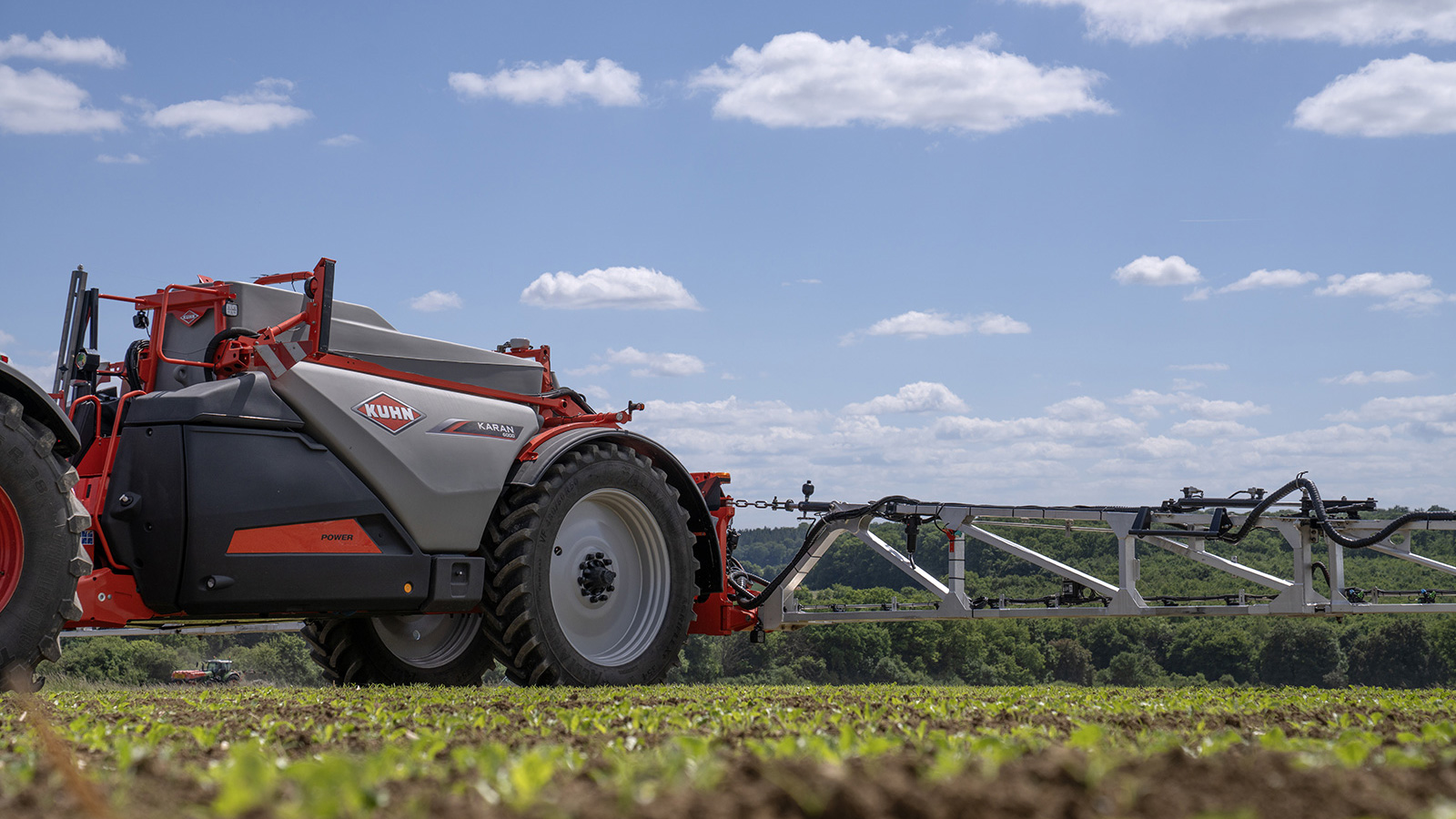

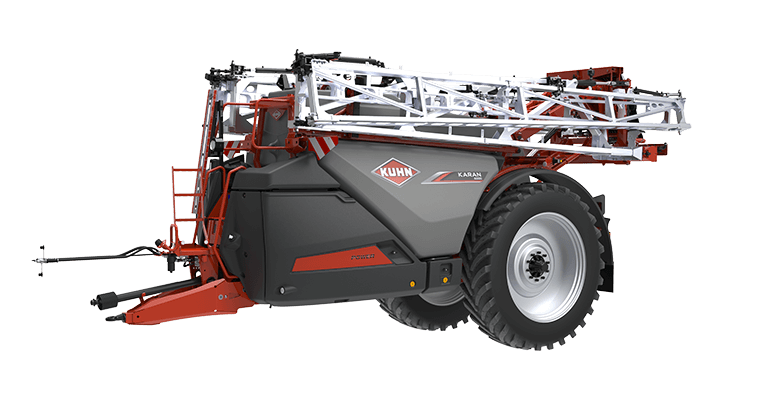

KARAN is KUHN's new efficient trailed sprayer

Performance, comfort, protection, and sustainability were the key priorities throughout its development. KARAN is available with tank capacities of 4,500 L, 5,200 L, 6,000 L, or 8,000 L, and can be equipped with steel or aluminum booms ranging from 18 to 45 meters in width.
